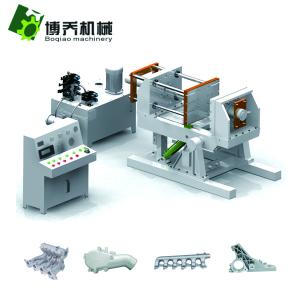

aluminum tilting Gravity Die Casting Machine OEM / ODM
Product features introduction:
² Flip angle 0-90° arbitrarily set
² Real-time display with human-machine interface
² Menu input, wide range of process parameters
² Smooth operation, adjustable flip speed and angle
² Reasonable design and easy operation
Compared to sand casting, metal casting has the following advantages:
1. The metal type has large thermal conductivity and heat capacity, the cooling rate of the molten metal is fast, the structure of the casting is dense, and the mechanical properties are higher than that of the sand casting. For example, the tensile strength of the aluminum alloy casting can be increased by 10%-20%, and the elongation is improved doubled.
2. Can obtain castings with high dimensional accuracy and good surface quality.
3. It can produce castings with complex internal cavity structure, such as engine block, cylinder head, wheel hub and so on.
4. Easy to automate and mechanize, high production efficiency
| Parameter | Unit | ZJ750 | ZJ860 | ZJ1210 |
| Dual active plate size | mm | 700*500 | 800*600 | 1200*1000 |
| Main mold opening and closing stroke | mm | 600 | 600 | 800 |
| Main model hydraulic cylinder bore | mm | 150 | 150 | 200 |
| Secondary mold opening and closing stroke | mm | 100 | 100 | 150 |
| Auxiliary mold hydraulic cylinder bore | mm | 150 | 150 | 200 |
| before and after the additional cylinder template size | mm | 300*400 | 300*400 | 500*600 |
| before and after the additional mold stroke | mm | 150 | 150 | 200 |
| before and after the cylinder bore | mm | 125 | 125 | 180 |
| the main mold vice mold minimum closure and maximum open Distance | mm | 400*1100 | 500*1200 | 900*1600 |
| tilt angle | ° | 0-90 | 0-90 | 0-90 |
| tilt cylinder bore | mm | 100 | 100 | 150 |
